Overview

USB Monitor Protocol Analyzer is a USB port sniffer, data logger, USB protocol analyzer and overall smart analysis tool when it comes to all things Universal Serial Bus (USB).

The software will review all USB traffic, capture that traffic, log it, analyze it later and let the user view that information in various ways. Packets of data can be analyzed and reported on. Modem data can be captured, broken down and viewed.

This USB monitor can check data flowing between a USB device and an application running under Windows. Port connections can be debugged and reverse-engineered with different protocols tested. Device drivers can also be developed and tested using this software.

A USB device can be tested to ensure that it is working correctly, so this software can also partly be used for USB diagnostic purposes as well. USB connections can be repeatedly tested and issues diagnosed correctly.

Installation

The software required 22.75 MB of available space to complete the setup package. The installation completed without any difficulties.

There was no adware, toolbars, malware or spyware included with the setup program.

USB Monitor Protocol Analyzer requires Windows XP, Vista, 7, 8, 8.1, Windows Server 2003, Windows Server 2003 R2, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012 or Windows Server 2012 R2.

Interface

The interface is extensive with numerous menu options and a huge double row of small toolbar buttons to contend with.

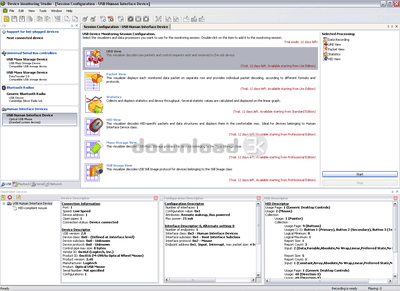

The various detected USB devices are shown in the left pane. More general information is shown in the right pane. The selected device descriptor is detailed in the bottom pane when needing more information about a particular device either in order to better identify it or to just learn more about it.

The additional dialog windows that open when choosing different actions are also detailed and comprehensive.

The interface is aimed at developers and technicians who work with USB ports and can use the tool to test, develop and improve their hardware and software.

Pros

• USB data detector and logger
• Capture data in HEX, ASCII or binary formats
• Testing tool for USB devices, hardware devices connected via USB port, and software that communicates with USB devices
• Serious USB debugging tools
• 14 days trial period

Cons

• Comprehensive interface that is not for the novice

Alternatives

Wireshark can perform network analysis and management, but closer alternatives include USB Port Monitor, USB Analyzer, and USB Monitor Pro.

Conclusion

USB Monitor Protocol Analyzer is an excellent USB testing, debugging, and data sniffer. The tool is ideal for developers that use USB ports and need to verify that their hardware or software is functioning as it should.
